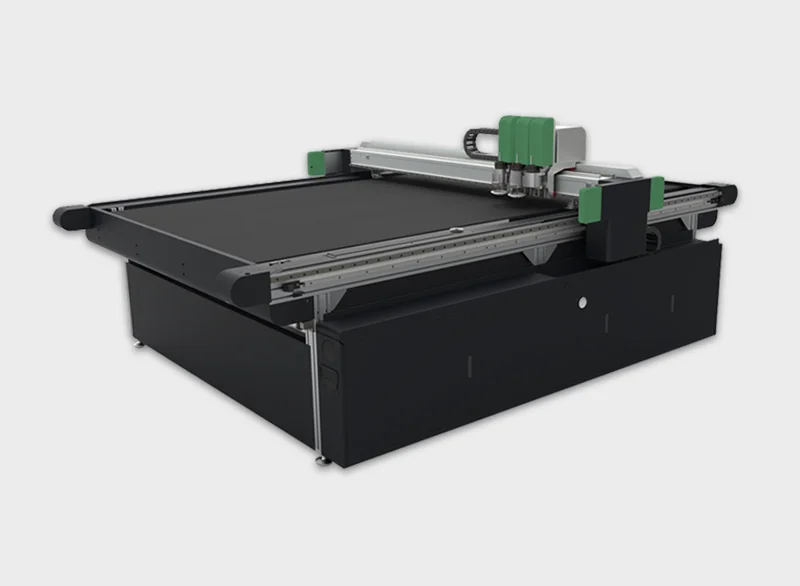

Model : WFM
Wide format cutting machine for all industrial
Large digital cutting machine. This is the best choice for many industries. With a precise system, there are many cutting functions cut, half cut, carved, crease, grooved and read the marks with high precision performance. Also have 'easy-to-use' software which showing the results of the job before cut. If you are looking for Foam cutting machine, Canvas cutting machine, Automotive gasket cutting machine, Circuit board cutting machine, Insulation cutting machine just call us, We can provide the demonstrate cutting for you.
More information :
Information detail about the digital cutting machine model WFM
| Width / Length | 2500mm | 3500mm | 5500mm | Customizrd Size |
|---|---|---|---|---|
| 1550mm | WFM-2515 Cutting Area 2500mm x 1550mm Floor Area 3300mm x 2300mm | WFM-3515 Cutting Area 3500mm x 1550mm Floor Area 4300mm x 2300mm | WFM-5515 Cutting Area 5500mm x 1550mm Floor Area 6300mm x 2300mm | Based on the stamdard size of WFM. Can customize the machine according to customer's special requirements. (ผลิตตาม Size ที่ลูกค้าต้องการ) |
| 2100mm | WFM-2521 Cutting Area 2500mm x 2100mm Floor Area 3300mm x 2900mm | WFM-3521 Cutting Area 3500mm x 2100mm Floor Area 4300mm x 2300mm | WFM-5521 Cutting Area 5500mm x 2100mm Floor Area 6300mm x 2900mm | |
| 3200mm | WFM-2532 Cutting Area 2500mm x 3200mm Floor Area 3300mm x 4000mm | WFM-3532 Cutting Area 3500mm x 3200mm Floor Area 4300mm x 4000mm | WFM-5532 Cutting Area 5500mm x 3200mm Floor Area 6300mm x 4000mm |
| Pump Vacuum | 1 - 2 Unit 5.5kw | 2 - 3 Unit 5.5kw | 3 - 4 Unit 5.5kw |
|---|---|---|---|
| Beam | Single Beam | Can select single beam or dual beams | |
| Speed | 1500mm/s | ||
| Cutting Accuracy | 0.1mm | ||
| Thickness | 50mm | ||
| Data Format | DXF, HPGL | ||
| Interface | Sreial Port | ||
| Media | Vacuum System | ||
| Power | 220V/50HZ 380V/50HZ | ||
| Operating Environment | Temperature 0 ํC - 40 ํC Humidity 20% - 80%RH | ||
The quality of the cutting work from the WFM
WFM is the best choice for many industries. with a precise system which have many functions of cutting, cut, half cut, engraving, creasing, grooving, and reading the marks.
Signs and advertisements, cutting sample boxes, such as corrugated board, chipboard, honeycomb paper or foam board which easy to make. Including using a router that can cut acrylic sheets, aluminum sheets or hard plastic. The machine can work with roll or sheet material by use auto-feed system.
More information
